Customized Reporting in Qlikview

Sunil Ray 16 Apr, 2015 • 4 min read

As a BI professional, I am used to receiving ad-hoc reporting requirements from business users which need a fast turn-around (sometimes under the name of ‘Analysis’). What is interesting is that 95% of these requirements can be delivered by re-arranging, cross-joining, summarizing or expanding some or the other existing reports.

So, if we merge all ad-hoc and regular reports, it will become a master report with multiple metrics and multiple dimensions, which can be summarized using following expression:

Multiple Metrics (KPI) X Multiple Dimensions = Multiple Reports

This is how I deal with the ad-hoc requirements. Excel provides ‘Pivot tables’ to enable creation of this kind of a master repository, where people can select dimension and metric from the available set of fields.

So, when I started using Qlikview two years back, I was looking for a similar solution i.e. multiple reports where the user has a feature to select or deselect dimension and metrics as per their requirements i.e. customized reporting. Thankfully, Qlikview 11 has a feature called “Conditional enabling of Expression and Dimension”.

Depending on the user, you can show or hide certain dimensions or metrics.  If you would like end users to create their own tables / reports, you may use this feature to dynamically add/remove dimensions or metrics.

Adhoc_Report_Qlikview_Enable_Dimension

[stextbox id = “section”] How to create Customized reports in Qlikview ? [/stextbox]



Step 1:

Identify the entire set of dimension and metric that you want or can think of being used by end users. It is very critical that you bring in all dimensions and metrics, otherwise the purpose of this report gets lost.

Create separate INLINE table for dimensions and metric. I would recommend two columns in each table, one for the descriptor and one to uniquely identify it by a single letter (A-Z)/ Number.

Example:

AdhocDimensions:
 LOAD * INLINE [dimension_1,dimesnion_flag
 Region,1
 Coutry,2
 State,3
 City,4
 Year,5
 Quarter,6
 Month,7
 Branch Segment,8
 Product,9
 Product Group,10
 Sales Channel,11
 Sales Manager,12
 Sales Manager Designation,13
 Financial Advisor,14,
 Finanacial Advisor Vintage Group,15
 ];
AdhocParameter:
 LOAD * INLINE [Parameter_1, Parameter_flag
 Sales, A
 Renewal Collection,B
 Poliices, C
 Manpower,D
 Profit,E

];

This table will not be associated to any other tables in your model.

Adhoc_report_qlikview_inline_table

Step 2:

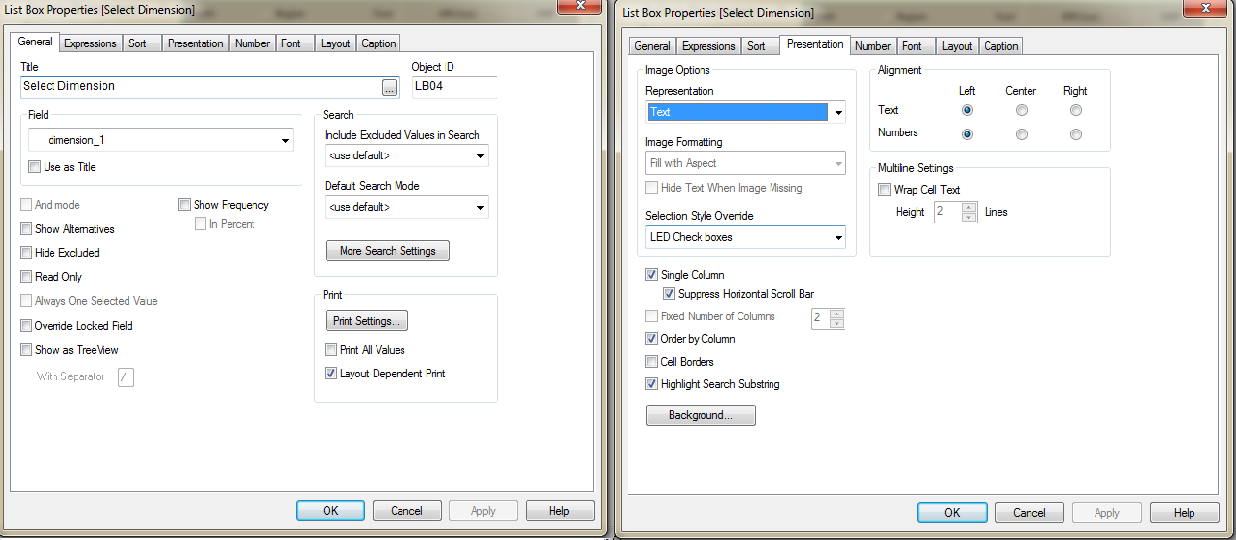

Move to layout TAB, create a list box and select field “dimension_1” that was declared in INLINE table. Preferably select list box with LED check Box style so that selection / deselection of multiple dimensions can happen easily.

List_Box_Check_Box_Qlikview

Create similar list box for metric also.

Step 3:

Create object (Pivot Table/ Straight Table/ Chart …) that user will customize basis their selected dimension and expression. I am illustrating example of straight table.

Select all dimensions available in table “AdhocDimensions” (dimension inline table) and write a conditional expression for each dimension which results in the reporting. In the dimension properties, check the option for “Enable Conditional” and enter the following code for dimension “Month”: Dimension Month has defined value 7 in inline table under “dimension_flag” field.

 =SubStringCount(Concat(dimension_flag, '|'), 7)

Conditional_enable_dimension_Qlikview

Add similar code to each dimension, changing the corresponding numbers you used in your inline table.

Step 4:

Write expression for all metrics and enable conditional expressions by checking the option for “Enable” and writing conditional code for each expression

=SubStringCount(Concat(Parameter_flag, '|'), 'A')

Conditional_enable_expression_Qlikview

Step 5:

Add a condition in general tab of the straight table so that the object only displays when at least one dimension and expression is selected:

 =GetSelectedCount(dimension_1) > 0AND GetSelectedCount(Parameter_1)>0

Finally, we have customized reporting for end-user:

Adhoc_Report_Qlikview_Enable_Dimension

This is an example where we have brought out methods to create Customize reporting in Qlikview. What do you think about this methodology? Have you used to similar kind of practice? If yes, how did you create them? Do you think this tip was useful?

Do let me know your thoughts on using this feature in Qlikview.
